Gehäuse Vormonatge
ST 200 096-U
Pozicija | Kolicina | Naziv | Broj nacrta | |
---|---|---|---|---|
0 | 1 | O-Ring | OR | |
0 | 2 | O-Ring | OR | |
0 | 1 | O-Ring | OR | |
0 | 1 | O-Ring | OR | |
0 | 2 | Sicherungring DIN 472 | SR J16/vz | |
0 | 2 | Nutringmanschette | W 4075 091 | |
0 | 1 | Wellendichtung Ø10/22x7 | W 4083 054 | |
0 | 1 | Wellendichtung Ø22/32x7 | W 4083 316 | |
0 | 1 | Dichtring Ø26/32x1 | W 4088 223 X | |
0 | 1 | Drosselschraube | WB 400 888/ø0 | |
2 | 1 | Gehäuse | WB 010 019 | |
3 | 3 | ZylinderstiftØ5.25x5 | 14 561/3 | |
4 | 2 | Zylinderstift Ø9,25x6 | 14 561/13 | |
5 | 1 | Zylinderstift ø 12,25 x 6 | 14 561/16 | |

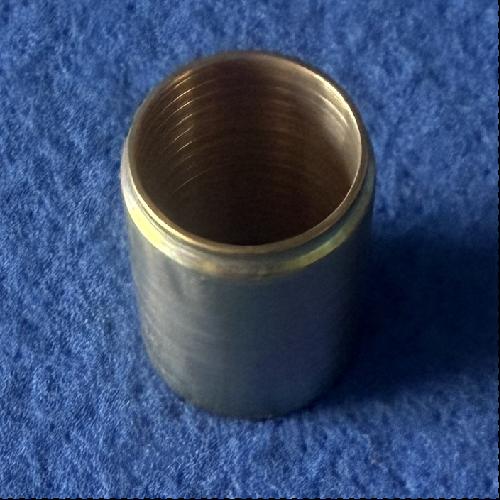

6 | 1 | Büchse | WB 400 896 | |
8 | 1 | Ventilsitz | ST 400 839 | |
10 | 1 | Ventilsitz | ST 400 843 | |
12 | 2 | Führungsbüchse | ST 400 838 | |
15 | 2 | Schutzscheibe | WB 400 461 | |
17 | 1 | Führungsbüchse | WB 400 950 | |
20 | 1 | Verschlußzapfen | WB 402 402 | |
22 | 1 | Deckel | WB 406 623 |
