Notbremszugkasten m. E-Kontakt
NZ 34
N 013 015
- rezervni dio ili aparat -
Klik na broj nacrta pokazuje informaciju za rezervni dio
| Pozicija | Kolicina | Naziv | Broj nacrta |
|
|---|---|---|---|---|
| 0 | 1 | Schild | E 100.813 |  |
| 0 | 1 | ventilni čep - komplet | WB 401 066-U | |

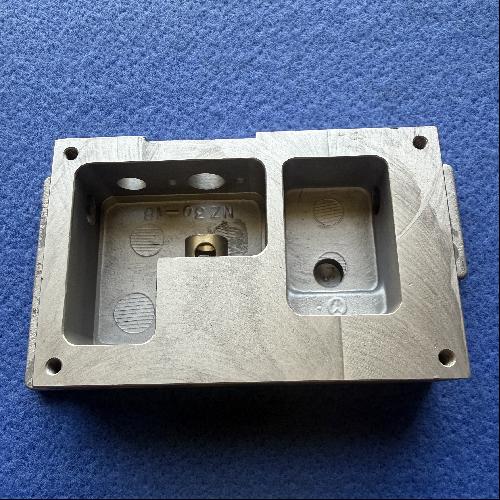

| 1 | 1 | Gehäuse | NZ 34-1 |  |
| 2 | 1 | Klinkenhebel | NZ 30-17 |  |
| 3 | 1 | Arretierstift | NZ 30-4/H |  |
| 4 | 1 | Feder | WB 400 456 |  |
| 5 | 1 | Bolzen | NZ 30-10/H |  |
| 6 | 1 | Druckhebel | NZ 30-15 |  |
| 7 | 1 | Druckfeder | NZ 30-9 |  |
| 8 | 2 | Sicherungsring | SR A10x1/vz | |
| 9 | 1 | Ventilsitz | NZ 30-8/H |  |
| 12 | 1 | Druckfeder | NZ 30-7 |  |
| 13 | 1 | O-Ring SH50 | OR |  |
| 14 | 1 | Deckel | NZ 30-6/H |  |
| 15 | 1 | Sicherungsring 27x1.2 | SR J27x1.2/vz |  |
| 16 | 1 | Deckel | NZ 30-16 |  |
| 18 | 4 | Senkschraube M5x12 MS58 | SS M5x12 |  |
| 19 | 1 | Abdeckblech | NZ 30-14 |  |
| 20 | 1 | Griff | NZ 30-13 |  |
| 21 | 1 | Spannhülse 3x20 | SH 3x20 | |
| 22 | 1 | Spannhülse 3x18 | SH 3x18 | |
| 23 | 1 | Winkel | NZ 34-2/H |  |
| 24 | 2 | Blindniet S Ø4x8 | BN/AL 4x8 | |
| 25 | 1 | Positionsschalter | NZ 34-3 |  |
| 26 | 2 | Zylinderschraube M4x12 | ZSR M4x12 | |
| 27 | 1 | Gewindeschutzstopfen | 10 107 |  |
