dispositivos de inversion
UV 55
N 027 070
- pedir pieza de repuesto -
Haga Click sobre el número para más información sobre la pieza de repuesto
pos. | cant. | desig. | número | |
---|---|---|---|---|
0 | 2 | Griff | UV 1-3 | |
1 | 2 | Schildlager RIC-R | UV 55-2 | |
2 | 6 | Zahlenschild | 10 665 | |
6 | 12 | Blindniet 3.2x16 | BN/Al 3.2x16 | |
8 | 2 | Rasterstift | UV 1-4 | |
9 | 2 | resorte | UV 3-3 | |
10 | 2 | Sechskantschraube | UV 3-4 | |
11 | 2 | anillo elástico | FR B16/vz | |
12 | 2 | pasador elástico | SPS 6x40 | |
13 | 2 | Anschlagstift | UV 40-16/H | |
14 | 2 | arandela elástica | FS B12 | |
15 | 2 | tuerca hexagonal | SKM M12 | |
16 | 1 | Stellring | 10 422 | |
17 | 1 | pasador elástico | SPS 6x36 | |

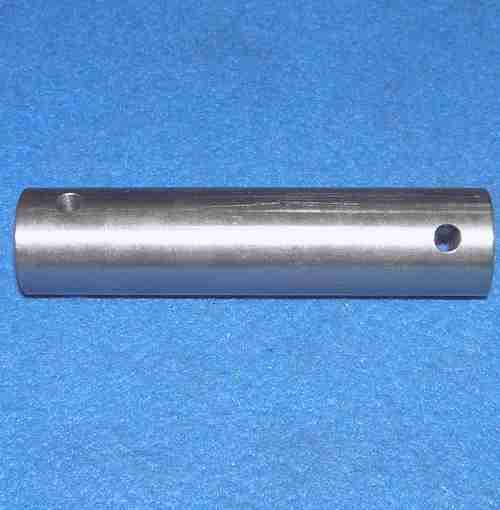

18 | 1 | Welle-kurz | UV 55-3 | |
20 | 2 | Zahnsegment | UV 55-5 | |

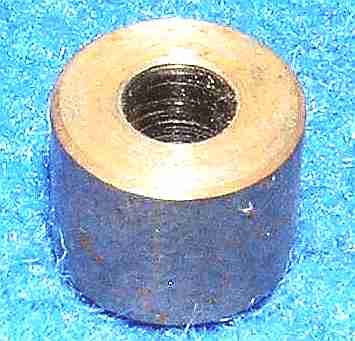

21 | 2 | Distanzhülse | UV 55-6 | |

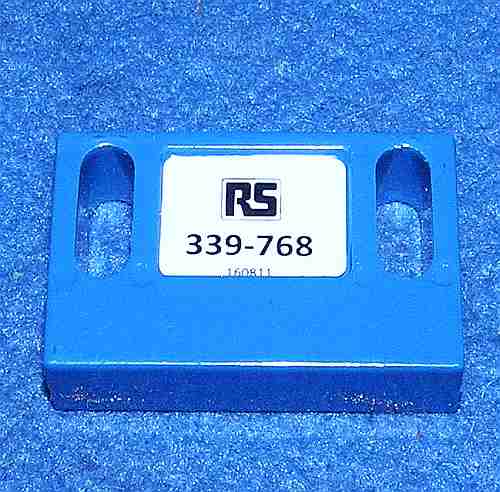

22 | 1 | Betätigungsmagnet | UV 55-7 | |

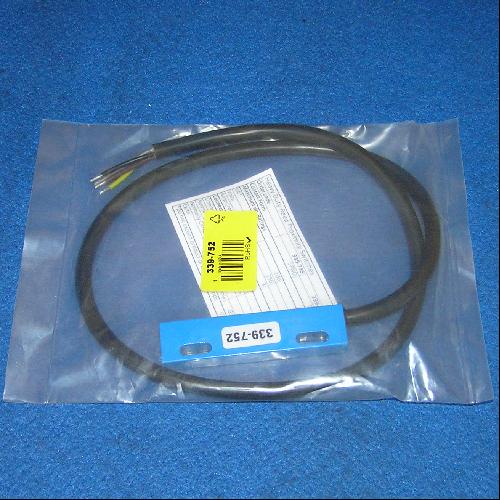

23 | 1 | Näherungsschalter | UV 55-8 | |

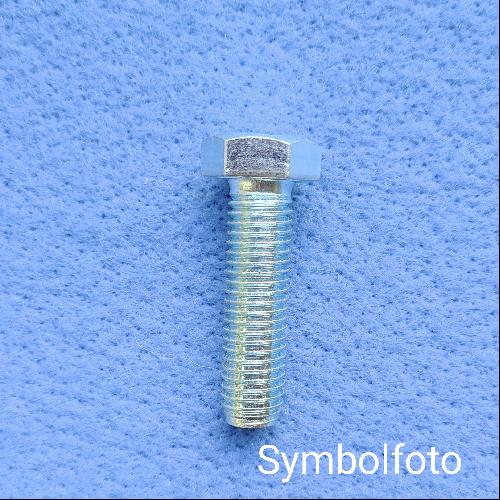

24 | 2 | tornillo de cabeza hexagonal | SKS M4x25 | |
25 | 2 | tornillo de cabeza hexagonal | SKS M4x16 | |
27 | 4 | arandela elástica | FS B4 | |

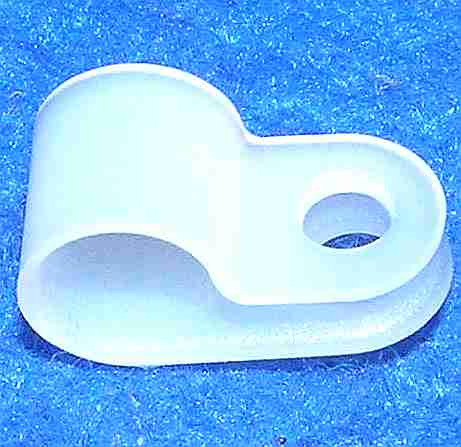

29 | 1 | Kabelschelle | UV 55-9 | |
30 | 1 | Tornillos de cabeza ranurada | ZSR M3x8 | |
34 | 2 | Spannstift | SPS 6x45/A2 | |
35 | 1 | Scheibe | SCH 3.2/9 |
