Fäkalienbehälter Doppelstockwagen
FB 1.00
pos. | cant. | desig. | número | |
---|---|---|---|---|
0 | 4 | Schneckengewindesch. | 09/02540 W4 | |
0 | 2 | Befestigungsschelle | 1003 089 | |
0 | 1 | Kabelverschraubung | 29.697.4 | |
0 | 1 | Steckhülse | 9-160583-5 | |
0 | 4 | Kabelsockel | ABMM-A-D | |
0 | 4 | Fächerscheibe | FÄS A4.3 | |
0 | 3 | Fächerscheibe | FÄS A6.4 | |
0 | 1 | Baugruppe 10 | FB 1.00-10 | |
0 | 1 | Rundrohrheizkörper | FB 1.00.03 | |
0 | 2 | Ultraschallschalter | FB 1.00.05 | |
0 | 1 | Geräteraumdichtung | FB 1.00.07 | |
0 | 1 | Typenschild | FB 1.00.12 | |
0 | 1 | CE-Zeichen | FB 1.00.13 | |
0 | 1 | Erdungssymbol | FB 1.00.14 | |
0 | 1 | Spannungszeichen gr. | FB 1.00.15 | |
0 | 1 | Spannungszeichen kl. | FB 1.00.16 | |
0 | 1 | Fäkalienbehälter kom | FB 1.01.00 | |
0 | 1 | Flansch | FB 1.01.10-1 | |
0 | 2 | Spülschlauch | FB 1.03.01 | |
0 | 1 | Isoflexrohr 20mm | FB 1.12.12 | |
0 | 1 | anillo tórico | FB 1.12.13 | |
0 | 2 | Drahtseil | FB 1.14.01 | |
0 | 2 | Drahtseil | FB 1.15.01 | |
0 | 1 | Kabelsatz komplett | FB 1.19.00 | |
0 | 1 | anillo elástico | FR A8 | |
0 | 1 | Termostat EMf-2 | GT 1.2.04.27 | |
0 | 2 | Kamlok-Blindkappe 3" | GT 1.4.00.01 | |
0 | 2 | Kamlok-Vaterteil 3" | GT 1.4.00.02 | |
0 | 2 | Kamlok-Blindkappe 1" | GT 1.4.00.04 | |
0 | 2 | Kamlok-Vaterteil 1" | GT 1.4.00.05 | |
0 | 8 | Niropreßhülse Seil Ø2,5 | GT 1.4.04.02 | |
0 | 2 | Inbusschraube | INS M4x10/A2 | |
0 | 4 | Inbusschraube | INS M4x12/A2 | |
0 | 2 | Kabelführung Ø6 | Kabelf.Ø6 | |
0 | 1 | Silikon | Nibosil/schw. | |
0 | 7 | tornillo de cabeza hexagonal | SKS M6x12/A2 | |

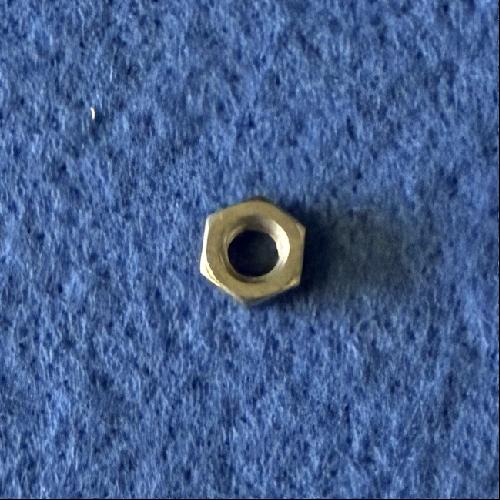

0 | 4 | Selbstsichernde Mutter | SSM/N M6 | |
0 | 4 | Kabelbinder | SST 1.5M-C |
