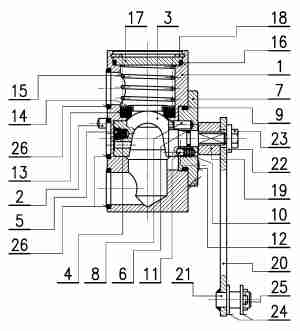

Absperrhahn 3/4" mit Umstellhebel 85mm
57.505.3 "a"
N 022 036
- rezervni dio ili aparat -
Klik na broj nacrta pokazuje informaciju za rezervni dio
| Pozicija | Kolicina | Naziv | Broj nacrta |
|
|---|---|---|---|---|
| 0 | 1 | Welle | 13.053.3 |  |
| 0 | 1 | Füllstück | 29.096.4 |  |
| 0 | 1 | poluga komplet | 29.097.4/K | |
| 0 | 1 | Scheibe | SCH 6.4/6340 | |
| 0 | 2 | Scheibe | SCH A10.5/DIN125 | |
| 0 | 1 | Sechskantschraube | SKS M6x16 |  |
| 0 | 1 | Splint | SP 3.2x20 |  |
| 1 | 1 | Gehäuse | 11.112.3 |  |
| 3 | 1 | Deckel | 12.004.4/H |  |
| 4 | 1 | Deckel | 12.002.4/H |  |
| 5 | 1 | Gummidichtung | 25.009.4 |  |
| 6 | 1 | Federauflage | 23.522.4 |  |
| 7 | 1 | Druckfeder | 26.011.4 |  |
| 8 | 1 | Druckfeder | 26.010.4 |  |
| 9 | 1 | Druckfeder | 26.009.4 |  |
| 10 | 1 | Ventilsitzgummi | 20.001.4 |  |
| 11 | 1 | O-Ring | OR |  |
| 12 | 1 | O-Ring | OR | |
| 13 | 3 | O-Ring | OR | |
| 14 | 1 | O-Ring | OR | |
| 15 | 2 | Senkschraube M5x16 | SS M5x16 | |
| 16 | 1 | Zylinderstift 6m6x14 | ZS 6m6x14 | |
| 17 | 1 | klin | ZS 5m6x12 | |
| 19 | 1 | Kugel 3/16" | Kugel 3/16" |  |
| 20 | 1 | Sicherungsring | SR J43x1,75/A2 |  |
