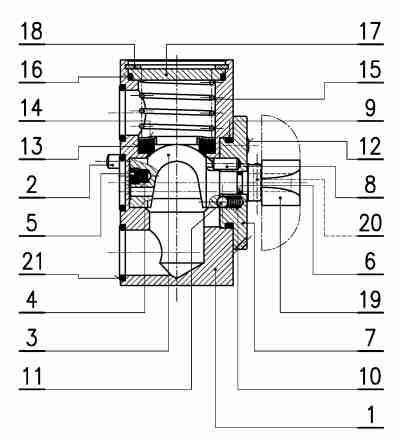

Absperrhahn 3/4"
57.001.3
N 022 001
- rezervni dio ili aparat -
Klik na broj nacrta pokazuje informaciju za rezervni dio
| Pozicija | Kolicina | Naziv | Broj nacrta |
|
|---|---|---|---|---|
| 1 | 1 | Gehäuse | 11.112.3 |  |
| 2 | 1 | Zylinderstift 6m6x14 | ZS 6m6x14 | |
| 3 | 1 | Welle | 13.003.4 |  |
| 4 | 1 | Druckfeder | 26.010.4 |  |
| 5 | 1 | Ventilsitzgummi | 20.001.4 |  |
| 6 | 1 | O-Ring | OR |  |
| 7 | 1 | Deckel | 12.004.4/H |  |
| 8 | 1 | klin | ZS 5m6x12 | |
| 9 | 1 | O-Ring | OR | |
| 10 | 1 | Druckfeder | 26.009.4 |  |
| 11 | 1 | Kugel 3/16" | Kugel 3/16" |  |
| 12 | 2 | Senkschraube M5x16 | SS M5x16 | |
| 13 | 1 | Gummidichtung | 25.009.4 |  |
| 14 | 1 | Federauflage | 23.522.4 |  |
| 15 | 1 | Druckfeder | 26.011.4 |  |
| 16 | 1 | O-Ring | OR | |
| 17 | 1 | Deckel | 12.002.4/H |  |
| 18 | 1 | Sicherungsring I43x1.75 | SR J43x1.75/vz |  |
| 19 | 1 | Griff | 29.011.4 |  |
| 20 | 1 | Zylinderkerbstift 3x16 | ZKS 3x16 | |
| 21 | 3 | O-Ring | OR | |
