spare parts for:

Automatischer Auslöser

LVA 110

N 012 012

- inquire spare part or device -

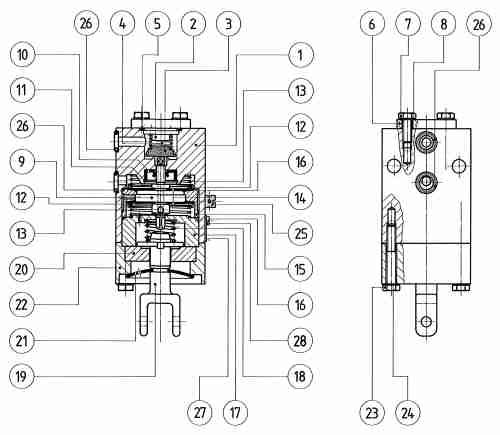

Click on drawing number for information about spare part

pos.	count	name	drawing number
1	1	Case	LVA 110-1
2	1	Washer	LVA 110-2
3	1	Ventilkappe	14 875
4	1	spring	ST 400 290
5	1	O-Ring	OR
6	1	Lid	WB 413 473
7	2	Sechskantschraube	SKS M6x16
8	4	Federscheibe B6	FS B6
9	1	Stössel	WB 409 485
10	1	Wellendichtung ø6,5x22x7	W 4083 020
11	1	Sicherungsring	SR J22x1/A2
12	2	pressure disk	WB 409 488
13	2	spring	WB 409 539
14	2	membrane	WB 409 538
15	1	Ring	WB 414 641
16	2	O-Ring	OR
17	1	Bushing	WB 414 643
18	1	spring	WB 400 279
19	1	Lever	ST 303 761
20	1	Washer	WB 409 490
21	1	membrane	WB 411 391
22	1	Lid	WB 413 009
23	2	Sechskantschraube DIN931	SKS M6x40/18
25	1	Drosselschraube	WB 411 297
26	2	O-Ring	OR
27	1	Schild	E 100 342
28	2	cylindrical tapping screw	ZSR 2.9x6.5
