brake cylinders

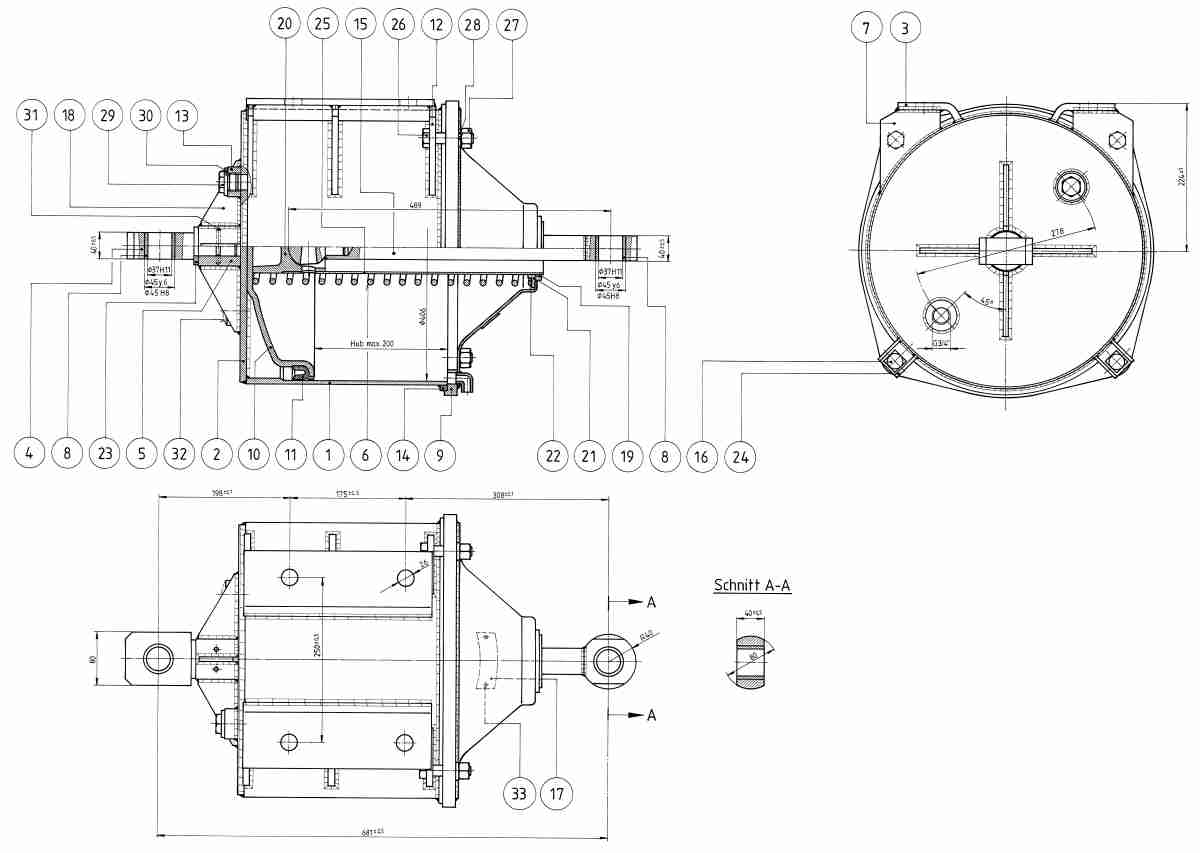

BZ 16 S-1F
- inquire spare part or device -
Click on drawing number for information about spare part
| pos. | count | name | drawing number |
|
|---|---|---|---|---|
| 0 | 1 | Gewindeschutzpf.G3/4 | 10 245 |  |
| 0 | 1 | Bezeichnungsschild | BZ 10-111 |  |
| 0 | 1 | Federring | BZ 12-15 |  |
| 0 | 4 | Versteifung | BZ 12-17/H |  |
| 0 | 1 | Lid | BZ 16-129 |  |
| 0 | 1 | Manschette | BZ 16-19 |  |
| 0 | 1 | spring | BZ 16-8 | |
| 0 | 1 | Führungsbuchse | DBZ 614-44 |  |
| 0 | 2 | Bushing | DBZ 614-9/H | |
| 0 | 1 | Dichtring A26x34x2 | DR A 26 |  |
| 0 | 4 | Federring A16 vz | FR A16 | |
| 0 | 4 | Sechskantmutter M16 vz | SKM M16 | |

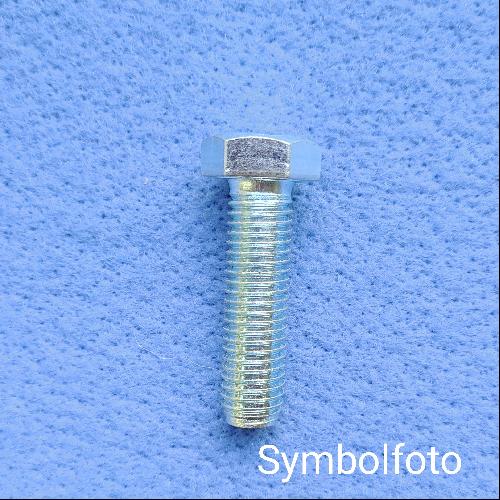

| 0 | 2 | Sechskantschraube DIN 933 | SKS M16x65 |  |
| 0 | 2 | Spannstift | SPS 6x50 | |
| 0 | 1 | Verschlußschraube 3/4" | VSS R3/4" |  |
| 0 | 1 | Winkelstück R1/8"DIN 1569 | WST R1/8" |  |
| 1 | 4 | Vierkantschraube | BZ 10-101 |  |
| 1 | 1 | Deckel-Vorbearbeitet | BZ 16-130 | |
| 2 | 1 | Pfanne | BZ 12-20 |  |
| 3 | 1 | Kolbenrohr | BZ 14-21 | |
| 4 | 1 | Washer | BZ 14-7 |  |
| 9 | 1 | Zylinder | BZ 16-1 |  |
| 10 | 4 | Rippe | BZ 16-10 |  |
| 11 | 1 | Kolbenplatte | BZ 16-18 |  |
| 12 | 1 | Boden | BZ 16-2 | |
| 13 | 2 | Spannblech | BZ 16-22 |  |
| 14 | 2 | Anschlußstutzen | BZ 16-23 | |
| 15 | 1 | Bördel | BZ 16-24 |  |
| 16 | 2 | Tragwinkel | BZ 16-3 |  |
| 17 | 1 | Lager | BZ 16-5 | |
| 18 | 1 | Hebelträger | BZ 16-74 |  |
| 19 | 2 | Schelle | BZ 16-9 |  |
| 21 | 1 | Kolbenstangenkugel | K 10 B-2 |  |
| 22 | 1 | Moosgummipfropfen Ø8 | Ø8x5 | |

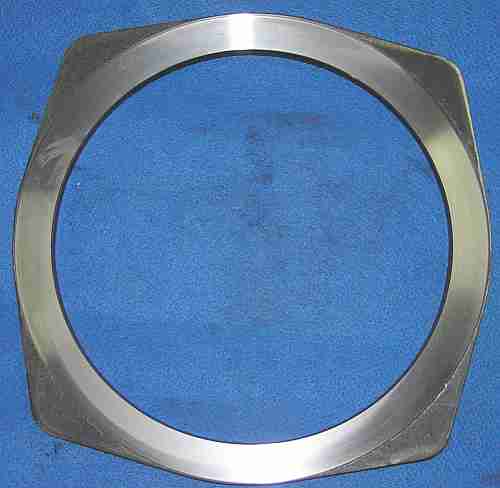

| 24 | 1 | flange | BZ 16-126 |  |
| 26 | 1 | Kolbenstange | BZ 16-131 | |
| 27 | 1 | Kolbenstangenauge | BZ 16-115 | |
| 29 | 1 | Washer | DBZ 614-43 |  |
