indicator devices
AV 71
N 016 100
- inquire spare part or device -

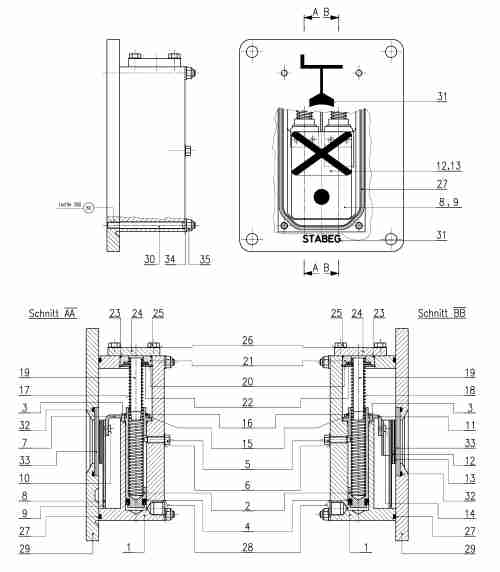

Click on drawing number for information about spare part
pos. | count | name | drawing number | |
---|---|---|---|---|
0 | 1 | Case | AV 70-1 | |
0 | 1 | P-Touch | Typenschild | |
2 | 2 | Kolben | AV 70-2/H | |
3 | 2 | Spannstift | SPS 2.5x5 | |
4 | 2 | Nutring | AV 70-3 | |
5 | 2 | Sechskantschraube | SKS AM6x20 | |
6 | 5 | Federscheibe B6 | FS B6 | |
7 | 1 | Winkel | AV 70-5/H | |
8 | 1 | Schild | AV 70-7/H | |
9 | 2 | Klebeschild | AV 70-12 | |
10 | 4 | Senkopf-Blindniete | BN 3x8/St | |
11 | 1 | Winkel | AV 70-9/H | |
12 | 1 | Schild | AV 70-11 | |
15 | 2 | O-Ring | OR | |
16 | 2 | Sicherungsring | SR A19x1.2/A2 | |
17 | 1 | spring | AV 70-13 | |
18 | 1 | spring | AV 70-14 | |
19 | 2 | Zentrierbolzen | AV 70-15/H | |
20 | 2 | Sicherungsring | SR J31x1.2/A2 | |
21 | 3 | Ring | AV 70-16/H | |
22 | 2 | Gummischeibe | AV 70-17 | |
23 | 2 | O-Ring | OR | |
24 | 1 | Lid | AV 70-18/H | |
25 | 3 | Sechskantschraube | SKS M6x16 | |
27 | 1 | O-Ring | OR | |
28 | 2 | Gewindeschutzkappe | 10 119 | |
29 | 1 | Lid | AV 101-2 | |
30 | 4 | threaded bolt | AV 10-8/H | |
31 | 1 | Klebeschild | AV 71-2 | |
32 | 1 | O-Ring | OR | |
33 | 1 | Staubschutz | AV 10-6C | |
34 | 4 | Scheibe 6.4 | SCH 6.4 | |
35 | 4 | Sechskantmutter M6 | SKM M6/DIN 985 |
