indicator devices

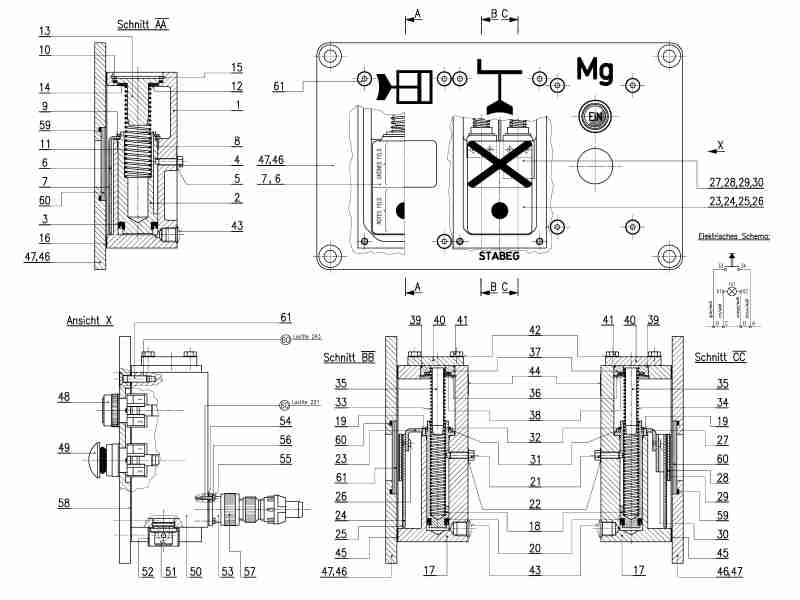

AV 1070/49
N 016 124
- inquire spare part or device -
Click on drawing number for information about spare part
pos. | count | name | drawing number | ![]() |
---|---|---|---|---|
0 | 1 | Case | AV 10-1 | ![]() |
0 | 1 | Lid | AV 10-4/H | ![]() |
0 | 8 | threaded bolt | AV 10-8/H | ![]() |
0 | 1 | incandescent lamp | AV 42-100 | ![]() |
0 | 1 | Meldeleuchte+EIN o.Lampe | AV 420-3 T1+T3 | ![]() |
0 | 1 | Schlagtaster | AV 420-4 T1+T2 | ![]() |
0 | 1 | Case | AV 49-3 | ![]() |
0 | 4 | threaded bolt | AV 56-10/H | ![]() |
0 | 1 | Case | AV 70-1 | |
0 | 2 | Zentrierbolzen | AV 70-15/H | ![]() |
0 | 2 | Ring | AV 70-16/H | ![]() |
0 | 1 | Lid | AV 70-18/H | ![]() |
0 | 2 | Kolben | AV 70-2/H | ![]() |
0 | 1 | Winkel | AV 70-5/H | ![]() |
0 | 1 | Schild | AV 70-7/H | ![]() |
0 | 1 | Winkel | AV 70-9/H | ![]() |
0 | 1 | Kontaktelem. EF 03.3 | EF 03.3 | ![]() |
0 | 1 | Leuchtelement EL | EL | ![]() |
0 | 2 | O-Ring | OR | ![]() |
0 | 12 | Scheibe 6.4 | SCH 6.4 | |
0 | 12 | Sechskantmutter M6 | SKM M6/DIN 985 | ![]() |
0 | 1 | rubber seal | W 4088 319 X | ![]() |
2 | 1 | Kolben | AV 01-3/H | ![]() |
3 | 1 | Nutring, NBR 60 | AV 10-7A | ![]() |
4 | 3 | Sechskantschraube | SKS M6x20 | ![]() |
5 | 6 | Federscheibe B6 | FS B6 | ![]() |
6 | 1 | Anzeigeschild | AV 10-5/H | ![]() |
7 | 2 | Klebeschild | AV 10-12 | ![]() |
8 | 1 | O-Ring | OR | ![]() |
9 | 1 | Sicherungsring A 32x1.5V | SR AV32x1.5/vz | ![]() |
11 | 1 | spring | AV 2-5B | ![]() |
12 | 1 | Washer | AV 10-10 | ![]() |
14 | 1 | Gummischeibe | AV 2-11 | ![]() |
19 | 2 | Spannstift | SPS 2.5x5 | |
20 | 2 | Nutring | AV 70-3 | ![]() |
26 | 4 | Senkopf-Blindniete | BN 3x8/St | ![]() |
28 | 1 | Schild | AV 70-11 | ![]() |
29 | 1 | Klebeschild | AV 70-12 | ![]() |
31 | 2 | O-Ring | OR | ![]() |
32 | 2 | Sicherungsring | SR A19x1.2/A2 | ![]() |
33 | 1 | spring | AV 70-13 | ![]() |
34 | 1 | spring | AV 70-14 | ![]() |
36 | 2 | Sicherungsring | SR J31x1.2/A2 | ![]() |
38 | 2 | Gummischeibe | AV 70-17 | ![]() |
39 | 2 | O-Ring | OR | ![]() |
41 | 3 | Sechskantschraube | SKS M6x16 | ![]() |
43 | 3 | Gewindeschutzkappe | 10 119 | ![]() |
46 | 1 | Lid | AV 1070-3 | |
51 | 1 | Entwässerungsschraub | AV 460-5 | ![]() |
52 | 1 | Kappe | AV 42-3 | ![]() |
53 | 1 | Chassis Vormontage | AV 49-7 | ![]() |
54 | 1 | gasket | WB 400 063 | ![]() |
55 | 4 | cylinder head bolt | ZSR M2.6x10 | |
56 | 4 | Federscheibe A 2.6 | FS A2.6 | ![]() |
57 | 1 | Stecker | ST 401 191-1 | ![]() |
58 | 1 | gasket | AV 49-4 | ![]() |
59 | 2 | O-Ring | OR | ![]() |
60 | 2 | Staubschutz | AV 10-6C | ![]() |
